SpotFX™ Installation Guide
Follow the steps below to unpack, load your image, and mount your SpotFX™ projector. Have questions? Contact us — we’re happy to help.
- Remove one projector and one installation kit box
- Open the protective projector bag and remove the projector
- Open the installation box and remove the mounting bracket, image, retaining ring, and power supply
A — Un-thread the telescoping portion of the projector to expose the image placement area
B — Using the provided micro fiber cloth, insert the image into the projector backwards and upside-down of the desired orientation. If dust is noticed, use the provided micro fiber cloth to gently wipe off the optics and image
C — Using the cloth, insert the retention ring on top of the image to secure it in place
D — Thread on the telescoping portion of the projector

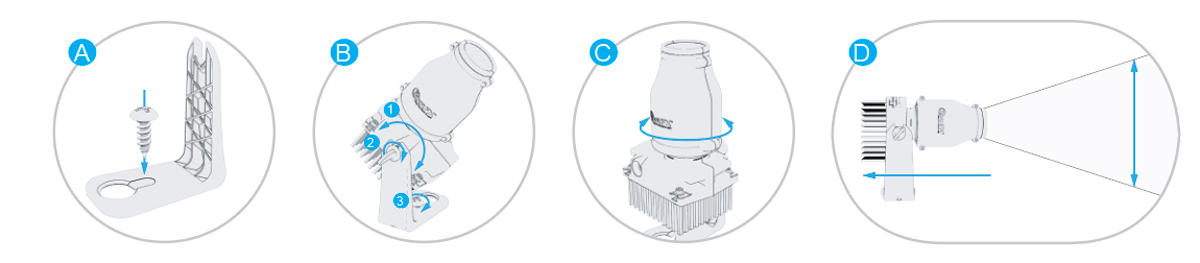

A — Use the included bracket mount or any standard 1/4″ 20 mounting option to mount the projector in your desired location
B — Place the projector into the bracket. By rotating the bracket and projector, aim the projected image to the desired location, then secure by tightening the thumb screw and bracket screw
C — Focus the image by rotating the telescoping lens
D — To adjust image size, move the unit closer to or further from the surface and adjust focus accordingly
SpotFX™ Projector
Event and wedding rentals are coming soon. SpotFX™ is currently offered for purchase while we prepare a limited rental program. You can join the interest list to be notified when rentals launch. Contact us today!
SpotFX™ is used by:
- Retailers and brands
- Event producers
- Designers and agencies
- Restaurants and bars
- Venues and hospitality teams
Yes. Many customers use multiple units for:
- Larger spaces
- Repeating floor graphics
- Multi-wall branding
- Directional pathways
SpotFX™ can be used outdoors in dry, protected conditions. It is not waterproof and should not be exposed to rain or extreme weather.
Yes. SpotFX™ is designed for extended operation in commercial environments. The low power draw and efficient LED system help ensure longevity and consistent performance.
Yes. SpotFX™ is designed for plug-and-play setup. No tools or technical experience are required. Position the fixture, insert the gobo, and power it on.
View the SpotFX™ Installation Guide
SpotFX™ is available with:
- A power cord for permanent or long-term installations
- An optional battery pack for portable, outlet-free use
Its ultra-low 3.8w power draw allows for extended operation without heat buildup.
View the SpotFX™ Installation Guide
No. SpotFX™ operates silently with no fan noise, making it suitable for quiet retail, hospitality, and gallery environments.
SpotFX™ is gobo-agnostic and supports:
- Glass gobos (best for fine detail and premium clarity)
- Metal gobos (best for bold, single-color designs)
- Film gobos (best for short-term or cost-effective use)
You are not locked into proprietary consumables.
Yes. SpotFX™ works very well as a retail floor projector and is commonly used for logos, directional graphics, and wayfinding. The wide-angle lens makes it easy to cover floor surfaces at short distances.
SpotFX™ is ideal for:
- Retail floors and windows
- Booths and trade shows
- Restaurant and bar interiors
- Lobbies and entryways
- Events and pop-ups
It performs best in controlled or moderate ambient lighting, where contrast is most effective.
SpotFX™ outputs 100 lumens optimized for high-contrast projection. This means it focuses on edge sharpness and readability rather than raw brightness, which delivers better real-world visibility on walls, floors, and signage surfaces.
Yes. With ultra-low power consumption, thermal stability, and long LED life, SpotFX™ is ideal for permanent or semi-permanent installs.
SpotFX™ is designed for indoor use and covered outdoor or damp locations. It is not intended for direct exposure to rain or harsh weather.
Because lumens don’t equal clarity. SpotFX™ is optimized for contrast, edge sharpness, and black density—the factors that make logos readable in real environments. Inflated lumen numbers often wash out fine detail.
Custom Gobos
Absolutely. Glass and metal gobos are durable and designed for repeated use. Simply swap the gobo in the projector whenever you need a different design. Many customers order multiple gobos for seasonal promotions or different events.
SpotFX™ projects well onto flat, matte surfaces — walls, floors, ceilings, fabric backdrops, and concrete. Glossy or highly reflective surfaces may reduce image clarity. Ambient light and projection distance also affect results. Our team is happy to advise on your specific setup.
Our custom gobos are optimized for the SpotFX™ projector and are manufactured in the standard 26mm format, which is compatible with many professional gobo projectors that accept glass, metal, or film gobos in that size. If you’re unsure about compatibility with another projector, contact us before ordering.
Yes. If you don’t have a logo or design file ready, we can help. Reach out to us at [email protected] with your concept and we’ll provide a quote for design services.
Standard production time is 5–7 business days after artwork is approved. Rush options may be available — contact us before ordering if you have a tight deadline.
Glass gobos deliver the highest image quality and are ideal for logos, fine text, and detailed artwork — best for permanent or long-term use. Metal gobos are steel-cut and work well for bold, high-contrast designs and simple shapes. Film gobos are lightweight and cost-effective, best for short-term use or color applications where you need a quick turnaround.
Dichroic glass gobos support up to three colors plus white, which is included as a freebie and doesn’t count against your limit. Metal and film gobos are single-color. No gradients — all colors must be solid.
Vector files are strongly preferred — .AI, .EPS, or .PDF. These give us the cleanest lines and sharpest projection results. If you only have a raster file (.PNG, .JPG), submit it and our team will evaluate whether it can be used or needs to be redrawn.
